Diode Dynamics

21-23 Ford F-150 Diode Dynamics DD7321 SS5 Grille CrossLink Lightbar Kit- Pro White Combo

21-23 Ford F-150 Diode Dynamics DD7321 SS5 Grille CrossLink Lightbar Kit- Pro White Combo

Regular price $2,049.95 USD
Regular price Sale price $2,049.95 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Diode Dynamics DD7321 SS5 Grille CrossLink Lightbar Kit – Pro White Combo

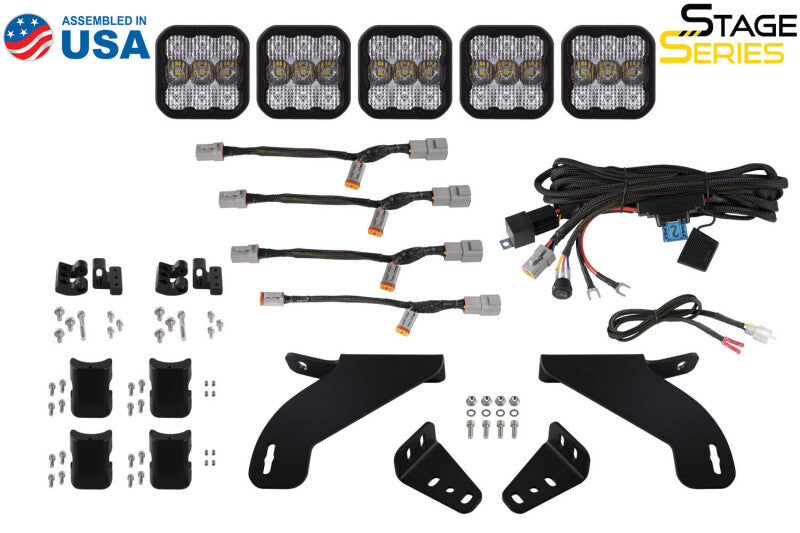

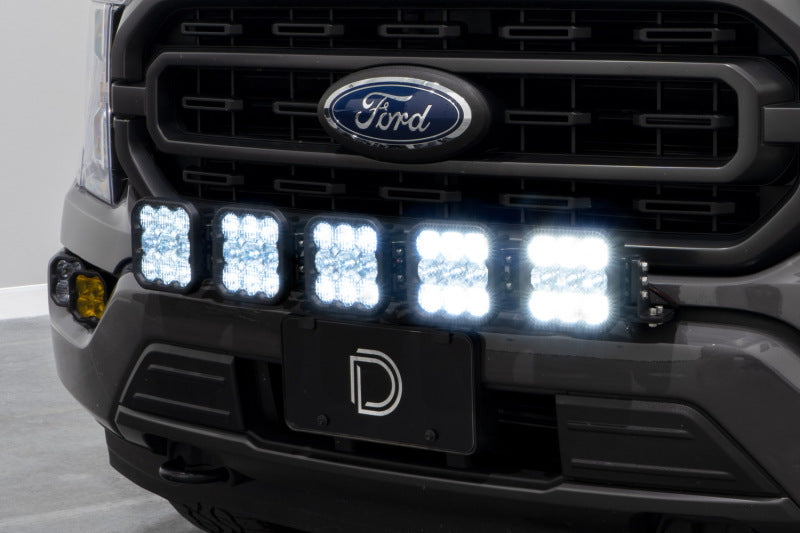

The Diode Dynamics DD7321 SS5 Grille CrossLink Lightbar Kit is a premium lighting solution designed specifically for the 2021–2023 Ford F-150. This kit features five high-output SS5 LED pods linked together to form a seamless lightbar, enhancing both the aesthetics and functionality of the vehicle. With ultra-high intensity, selectable backlight colors, and a rugged build, it offers superior performance for both on-road and off-road driving.

Key Features

  • Bolt-on fitment: Designed for 2021–2023 Ford F-150 models, ensuring a perfect fit without the need for cutting or drilling.

  • Ultra-high intensity: Each 5-inch LED pod delivers exceptional brightness, providing enhanced visibility in various driving conditions.

  • Custom-engineered TIR optics: Optimized optics for a focused beam pattern, maximizing light output and efficiency.

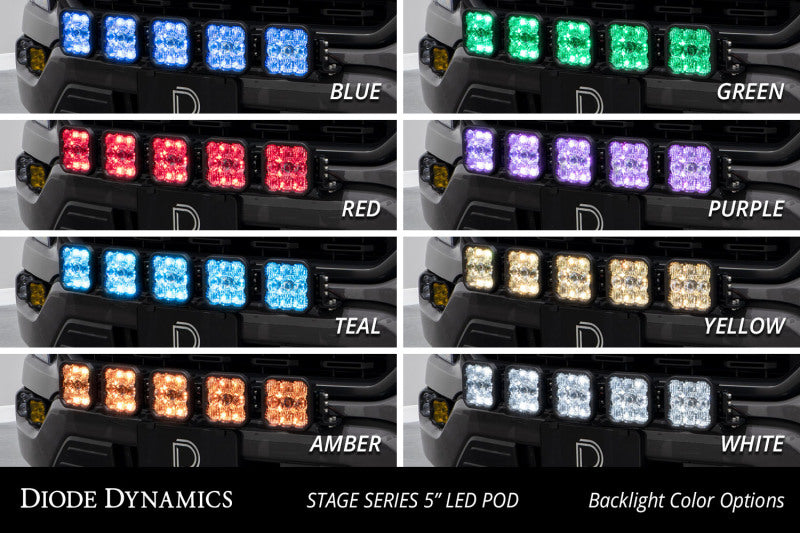

  • Selectable backlight color: Choose from eight different colors to customize the appearance of your vehicle.

  • Heavy-duty construction: Built to withstand harsh conditions, ensuring long-lasting durability.

  • Control through factory aux switch bank: Includes an OEM aux switch adapter wire for easy integration with the vehicle's existing controls.

  • Assembled in the USA: Proudly manufactured in the United States, ensuring high-quality craftsmanship.

Benefits

  • Enhanced Visibility: Provides superior illumination, improving safety during nighttime driving and adverse weather conditions.

  • Customizable Aesthetics: The selectable backlight colors allow for personalization, giving your F-150 a unique look.

  • Easy Integration: Designed to work seamlessly with the vehicle's existing systems, making installation straightforward.

  • Durable Performance: Constructed to endure tough environments, ensuring reliable operation over time.

  • Lifetime Warranty: Backed by a limited lifetime warranty, offering peace of mind and assurance of quality.

Product Specifications

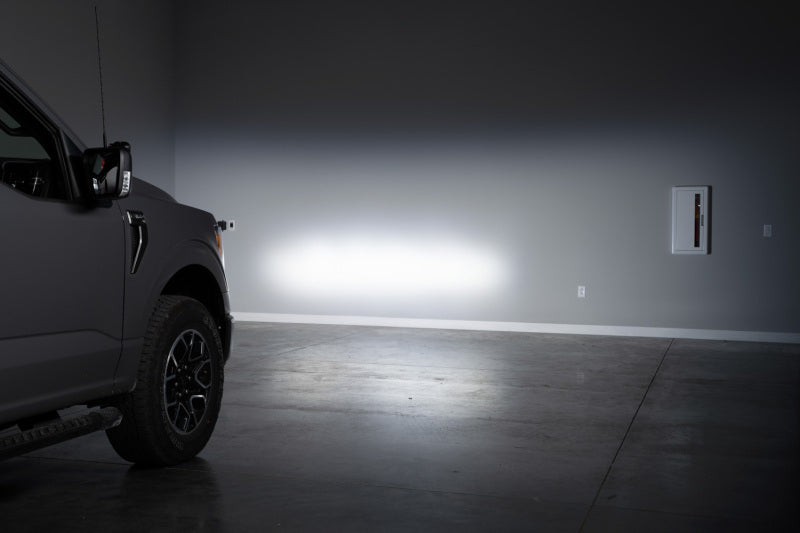

  • Beam Pattern: Combo (Driving and Flood)

  • Main Beam Power: 90W

  • Backlight Power: 3.17W

  • Operating Voltage: 9–16V

  • Operating Temperature: -40°C to 85°C (-40°F to 185°F)

  • Lens Color: White

  • Color Temperature: 6000K

  • Peak Beam Intensity: 75,700 cd

  • Measured Output: 9,600 lm

  • Raw Output: 9,700 lm

  • Ingress Protection: IP69K (Waterproof, High Pressure)

  • Material: Polycarbonate Lens, Aluminum Casting, Rubber Gasket

  • Cooling: Passive, Pin-Fin Heatsink

  • Connector: Deutsch DT Input

  • Driver Features: Constant Current

  • Weight: 9.80 lbs per pod

  • Total Kit Weight: 15.65 lbs

Install Difficulty Level

Installation of the Diode Dynamics DD7321 SS5 Grille CrossLink Lightbar Kit is designed to be straightforward. The kit utilizes factory mounting points on the 2021–2023 Ford F-150, eliminating the need for cutting or drilling. With basic hand tools and the included installation guide, the process can typically be completed in approximately 1 to 2 hours. This user-friendly design ensures that even those with minimal mechanical experience can achieve a professional installation.

Vehicle Fitment

This lightbar kit is compatible with the following vehicles:

  • Make: Ford

  • Model: F-150

  • Years: 2021, 2022, 2023

  • Engine: All engine configurations

Please note that this kit is not compatible with Ford F-150 Raptor models.

For more information or to report any inaccuracies in this product description, please contact the MPT Performance experts at (407) 636-7077 or via email.
