21-25 Ford Bronco Sport Diode Dynamics DD7138 SS3 LED Ditch Light Kit Sport White Combo

Diode Dynamics DD7138 SS3 LED Ditch Light Kit – Sport White Combo (2021–2025 Ford Bronco Sport)

The Diode Dynamics DD7138 SS3 LED Ditch Light Kit delivers a sleek, powerful lighting upgrade tailored for 2021–2025 Ford Bronco Sport owners. Designed with precision CAD-engineering and premium stainless steel mounts, this bolt-on system enhances both aesthetics and performance. It supports high-efficiency TIR optics to focus light exactly where needed, minimizes glare, and adds a striking sport white combo beam with amber backlight. Rugged, reliable, and highway-legal, the kit expertly balances form and function. Questions or concerns? Contact the MPT Performance experts at (407) 636‑7077 or via email.

Descriptive Overview

This lighting solution empowers Bronco Sport enthusiasts with superior visibility and a refined off‑road look. Without cutting or drilling, two SS3 LED pods install above the hood using factory mounting points, keeping the hood and antenna fully operational. The thick stainless steel brackets resist corrosion and reroute wiring cleanly for a factory‑finished result. Sport white combo optics provide both driving and flood beams, while an integrated amber backlight accentuates vehicle styling. Robust testing ensures reliable performance in extreme temperatures, vibration, moisture, and corrosion.

Key Features

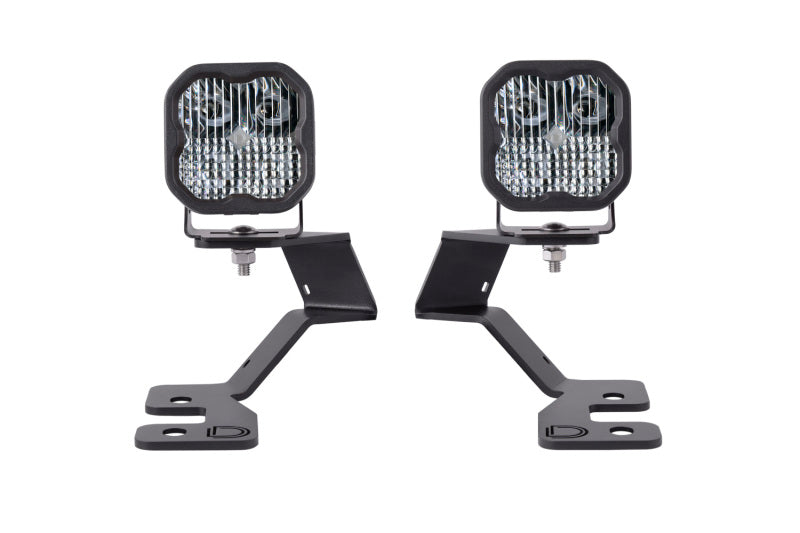

• Bolt-on installation using factory mounting points

• Sport white combo beam (driving + flood) with amber backlight

• High-efficiency TIR optics for focused, glare-reducing output

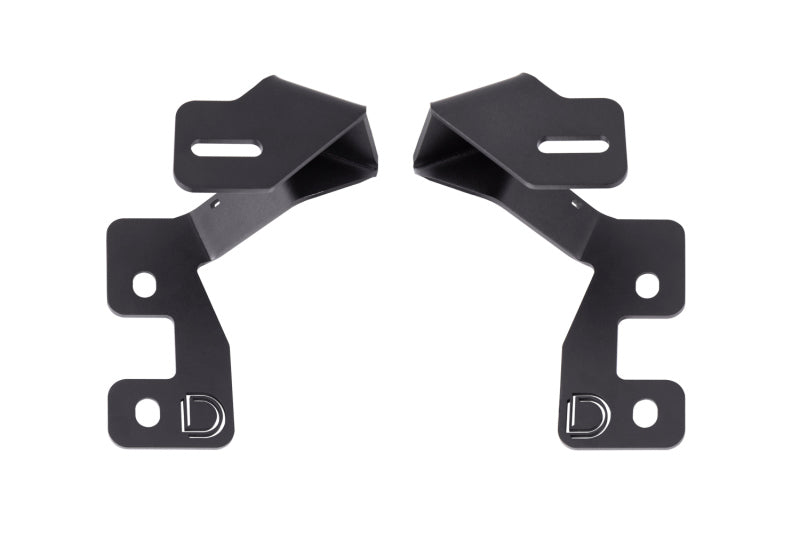

• Thick-gauge stainless steel brackets—no corrosion or flex

• Works seamlessly with hood and antenna operation

• Designed and assembled in the USA

• IP69K-rated for high-pressure water and dust resistance

Benefits

• Enhances nighttime and off-road visibility for SAFETY & CONFIDENCE

• Minimalist aesthetic upgrade with aggressive off-road style

• Engineered for ZERO glare and maximum efficiency

• Backed by a LIFETIME warranty and 30‑day return policy—purchase with peace of mind

• Compatible with factory switches and wiring—plug-and-play simplicity

Product Specs

• Pod Dimensions: 3″ × 3″ × 3.5″ each

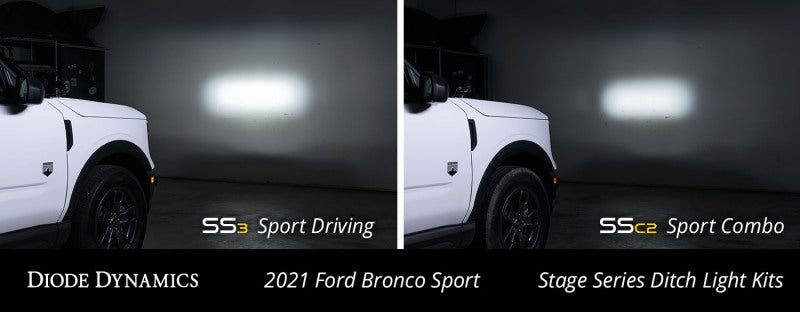

• Beam Pattern: Combo (65°×25° + 40°×20°)

• Optic Color/Temp: Sport White (6000 K)

• Peak Candela: ~31,500 cd per pod

• Measured Output: ~1,520 lumens per pod

• Raw Output: ~2,262 lumens per pod

• Power Draw: 14.5 W per pod (Sport)

• Voltage Range: 9–30 V DC

• Current: ~1.1 A @ 12.8 V

• Lens: Polycarbonate; Housing: Aluminum; Gasket: Rubber

• Waterproof Rating: IP69K

• Operating Temp: –40 °C to +85 °C

• Weight: ~2.15 lb per pod; ~5.25 lb total shipped

Install Difficulty Level

This kit is engineered for simplicity. Using only common tools, install time ranges from 20 to 60 minutes, with most users completing it in 30 minutes or less. As one enthusiast summarized:

“Installation time should be between 30–60 minutes and only requires basic tools.”

The kit includes detailed instructions and a plug-and-play harness. No drilling, no complex wiring—perfect for DIY installations.

Vehicle Fitment

• Year: 2021, 2022, 2023, 2024, 2025

• Make: Ford

• Model: Bronco Sport

• Engine: All factory engine options compatible

Install Difficulty Level

Rated "easy" for DIY enthusiasts. The included comprehensive guide, simple tools, and plug-and-play wiring make installation straightforward. It’s a no-stress enhancement that can be completed in under an hour.

Questions or notice any product description inaccuracies? Please contact the MPT Performance experts at (407) 636‑7077 or via email.
