19-21 Ford Ranger Diode Dynamics DD6594 SS6 LED Lightbar Kit - Amber Driving

19-21 Ford Ranger Diode Dynamics DD6594 SS6 LED Lightbar Kit – Amber Driving

This LED lightbar kit is specifically engineered for 2019–2021 Ford Rangers, delivering a sleek OEM appearance with CAD-precision brackets that use existing factory mounting points—no cutting, drilling, or guesswork required. Whether outfitted with twin 6″ bars or a single 18″ bar, the kit offers street-legal amber lighting that cuts through fog, dust, and nighttime roads with confidence. Rugged, reliable, and backed by an impressive 8-year warranty, this kit caters to serious enthusiasts who demand both performance and style.

Key Features

• Direct fit for 2019–2021 Ford Ranger front bumper opening

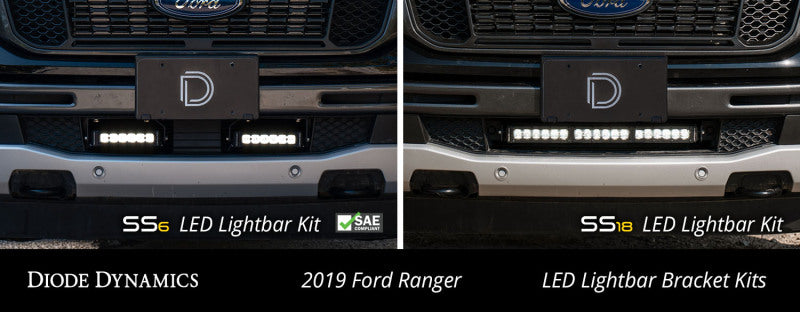

• Compatible with two 6″ SS6 bars or one 18″ SS18 bar

• CAD-designed brackets mimic OEM appearance

• Utilizes factory mounting locations—no modifications needed

• Durable powder-coated steel for corrosion resistance

• Advanced TIR optics with high-efficiency amber LEDs

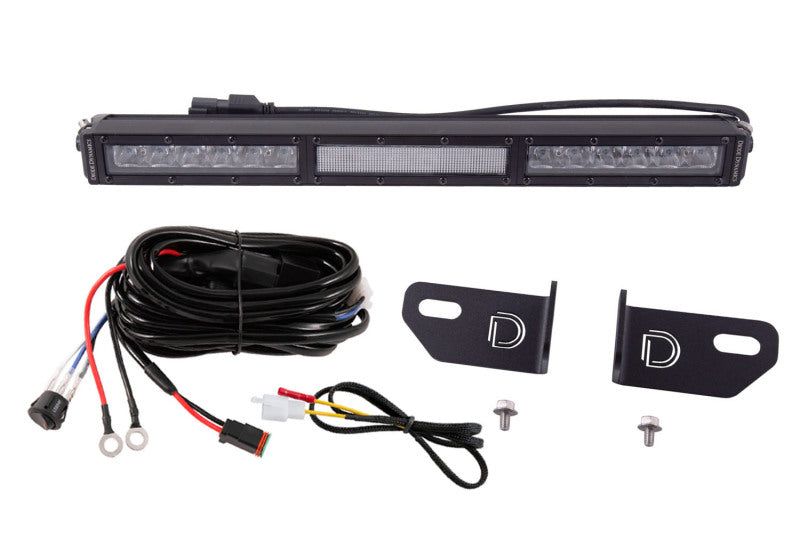

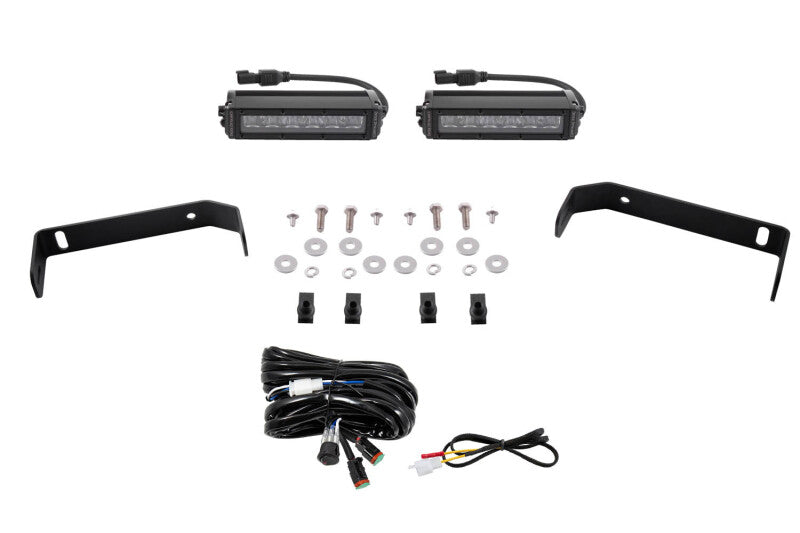

• Comes complete with wiring harness and hardware

• IP68-rated waterproof and vibration tested to SAE/DOT standards

Benefits

• Effortless street-legal compliance: Meets SAE J581 Driving/Auxiliary High Beam and SAE J583 Foglamp standards when aimed properly—ideal for legal highway use.

• Superior beam pattern: Amber driving beam cuts glare and improves contrast in inclement weather—shines bright while reducing eye strain.

• OEM-grade aesthetic: Seamlessly integrates into the bumper for a factory-installed look.

• Bulletproof reliability: Withstands temperatures from –40 °F to 185 °F, vibration, and moisture, used and trusted in rally and endurance racing.

• Long-term assurance: Includes an 8‑year warranty and 30‑day no restocking return policy, plus satisfaction guarantee.

• Peace of mind wiring: Heavy-duty harness and switch adapter included—no scavenging old wiring.

Specifications

• Lightbar Options: Two 6″ SS6 or one 18″ SS18

• Color/Beam: Amber Driving (2000 K)

• Power Draw: SS6 – 26.6 W (1.9 A @ 14 V), SS18 – 79.8 W (5.7 A @ 14 V)

• Raw Lumens: SS6 – 1,140 lm (measured 800 lm); SS18 – 6,840 lm (measured 4,200 lm)

• Peak Intensity: SS6 – 33,000 cd (330 lux @ 10 m); SS18 – 99,500 cd (315 lux @ 10 m)

• Dimensions: SS6 – 7 × 3 × 1.63 in; SS18 – per manufacturer CAD

• Housing: Powder-coated steel brackets, aluminum heatsink, polycarbonate lens

• Ingress Rating: IP68 waterproof

• Connector: Deutsch DT

• Temperature Range: –40 °C to 85 °C (–40 °F to 185 °F)

• Certifications: SAE J581, J583 street-legal marks

• Warranty: 8‑year limited

Install Difficulty Level

Installation is designed to be straightforward and fast. With CAD-engineered brackets using pre-existing mounting locations, no cutting or drilling is needed. Basic tools and under 1 hour are all that’s required—most users report finishing within 30–60 minutes.

Vehicle Fitment

Fits 2019, 2020, and 2021 Ford Ranger models (all engine options). The 18″ bar kit requires removal of the Adaptive Cruise Control module—as noted by the manufacturer, it is incompatible without this step.

If any details seem inaccurate, or to report product description inconsistencies, contact MPT Performance experts at (407) 636‑7077 or via email.
