17-20 Ford Raptor Diode Dynamics DD7337 SS5 Grille CrossLink Lightbar Kit - Pro White Combo

Name: 17-20 Ford Raptor Diode Dynamics DD7337 SS5 Grille CrossLink Lightbar Kit - Pro White Combo
Brand: Diode Dynamics
SKU: DIODD7337
Price: 2449.95 USD
Availability: InStock

$2,449.95 USD

Sale Sold out

Shipping calculated at checkout.

Diode Dynamics DD7337 SS5 Grille CrossLink Lightbar Kit – Pro White Combo

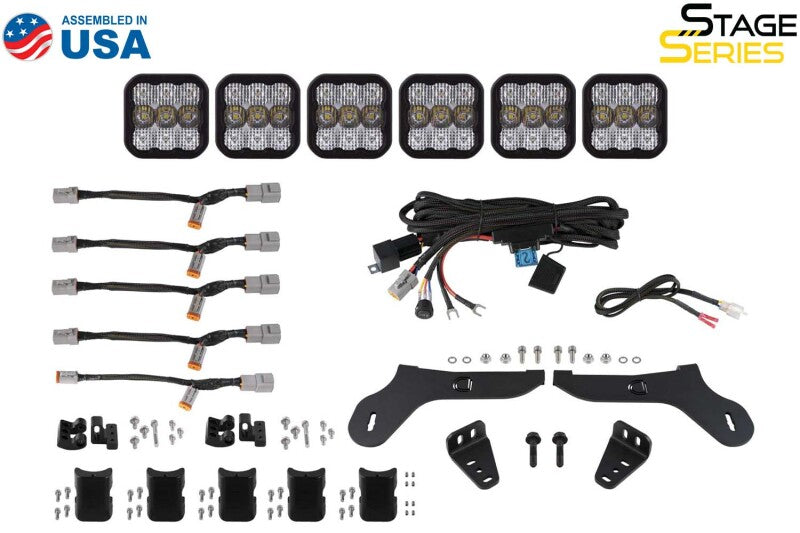

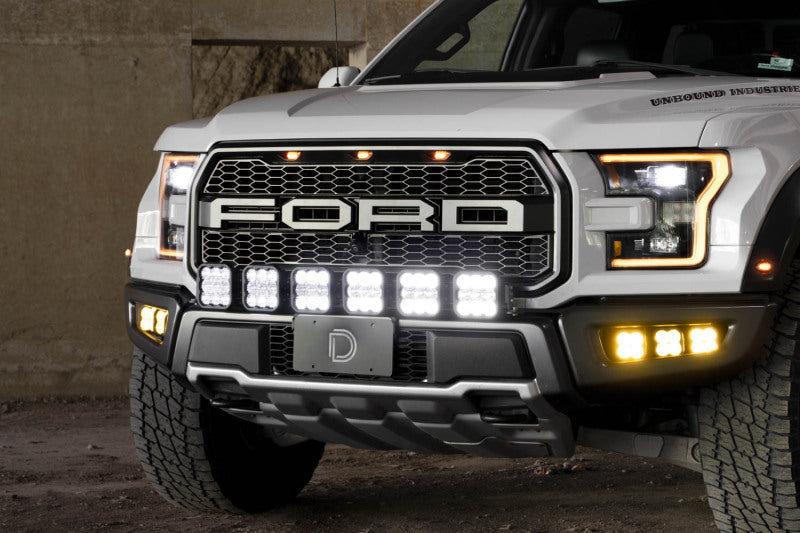

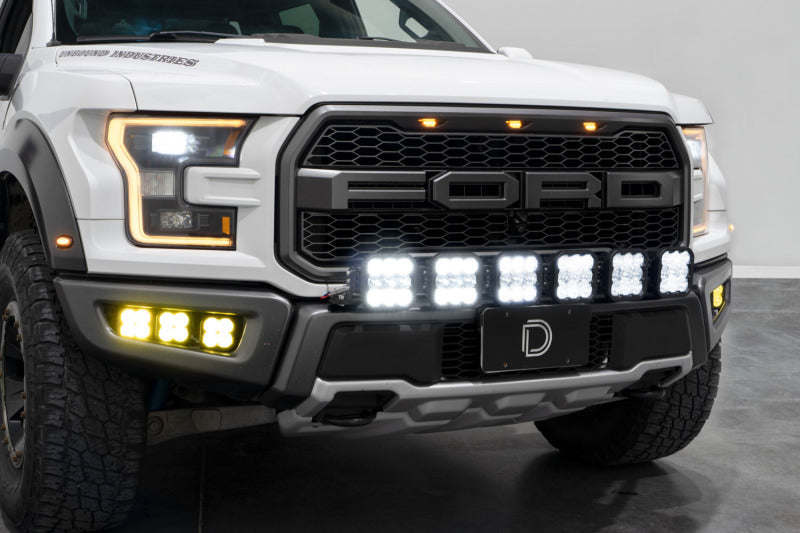

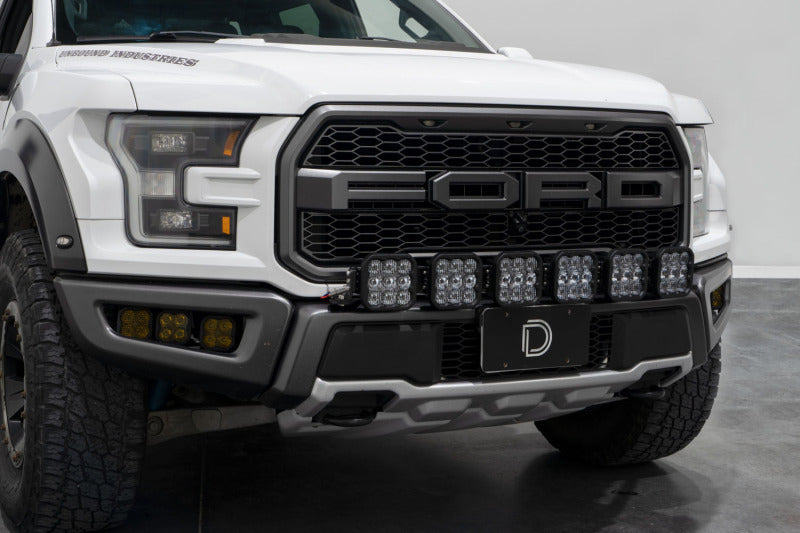

The Diode Dynamics DD7337 SS5 Grille CrossLink Lightbar Kit for the 2017–2020 Ford Raptor is a premium lighting solution designed to enhance both the functionality and aesthetics of your vehicle. This kit features six high-performance SS5 LED pods arranged in a curved configuration, creating a seamless lightbar that integrates perfectly with the factory grille. With ultra-high intensity output, selectable backlight colors, and rugged construction, this lightbar is engineered to withstand the toughest conditions while providing superior illumination.

Key Features

Bolt-On Installation: Specifically designed for the 2017–2020 Ford Raptor, utilizing existing factory mounting points for a straightforward installation—no cutting or drilling required.
Ultra-High Intensity Output: Each SS5 pod delivers exceptional brightness, featuring custom-engineered TIR optics for focused and efficient light distribution.

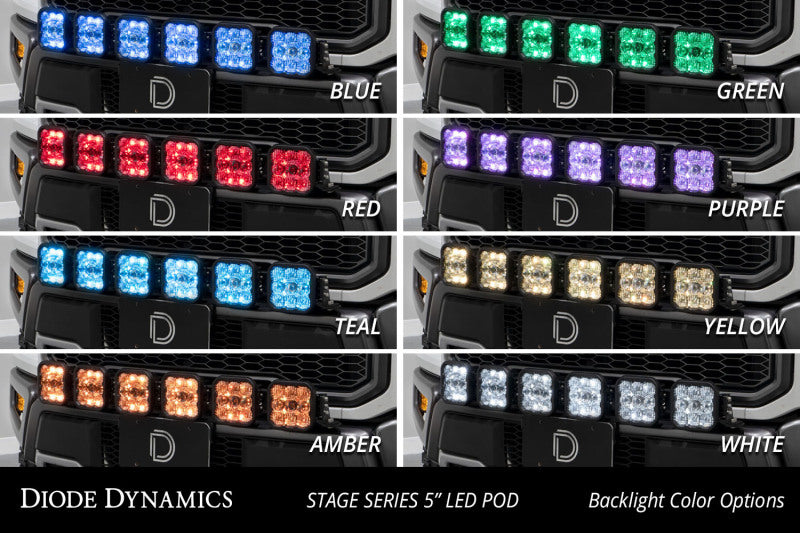

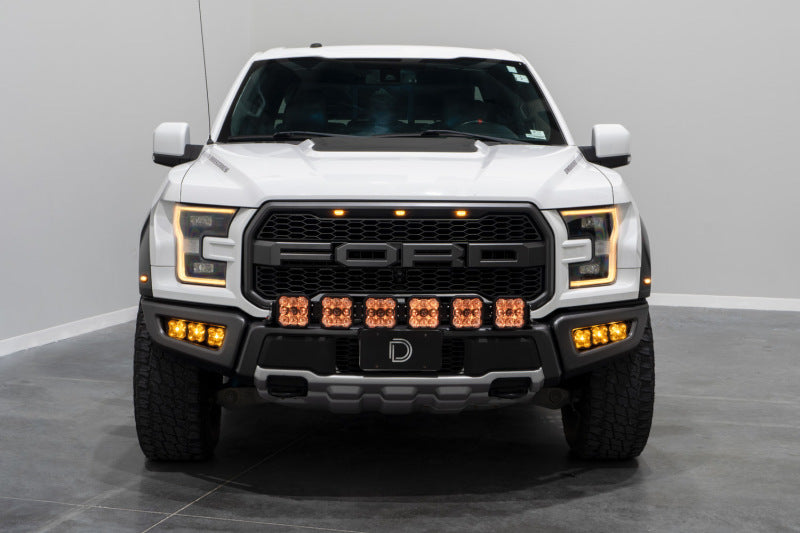

Selectable Backlight Colors: Offers eight different color options, allowing you to customize the appearance of your vehicle with ease.
Patent-Pending CrossLink Technology: Enables the linking of multiple SS5 pods to create a single, rigid lightbar with adjustable configurations.
Control Through OEM Aux Switches: Includes a harness compatible with the factory aux switch bank for convenient control.

Benefits

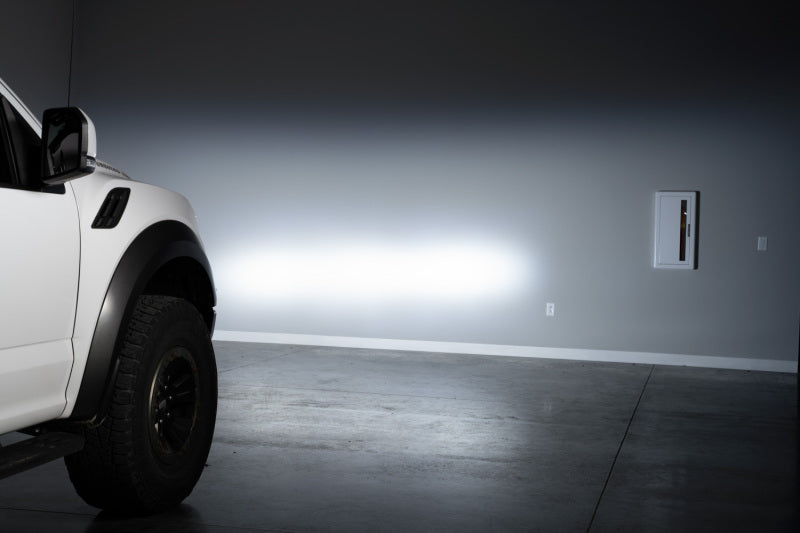

Enhanced Visibility: Provides superior illumination for off-road adventures, ensuring better visibility in various driving conditions.
Customizable Aesthetics: The selectable backlight colors allow you to match or contrast with your vehicle's existing lighting scheme.
Durable Construction: Built to withstand harsh environments, ensuring long-lasting performance and reliability.
Easy Installation: The bolt-on design and included harness make installation straightforward, saving time and effort.
Warranty Assurance: Backed by a limited lifetime warranty, offering peace of mind and support.

Product Specifications

Beam Pattern: Combo (Driving and Flood)
Color Temperature: 6000K (Cool White)
Raw Lumens: 9,600 lm
Measured Lumens: 3,800 lm
Peak Beam Intensity: 81,600 cd
Operating Voltage: 9–16V
Operating Temperature: -40°F to 185°F
Ingress Protection: IP69K (Waterproof and High Pressure)
Material: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Weight: Approximately 24 lbs

Install Difficulty Level

Installation of the DD7337 SS5 Grille CrossLink Lightbar Kit is straightforward, with an estimated installation time of 1–2 hours. The kit includes all necessary hardware and a detailed installation guide, making it suitable for those with basic mechanical skills. No cutting or drilling is required, and the included harness is compatible with the factory aux switch bank for easy control.
